** AARON'S SIX LOBE SCREWS,

 high performance, close tolerance  **

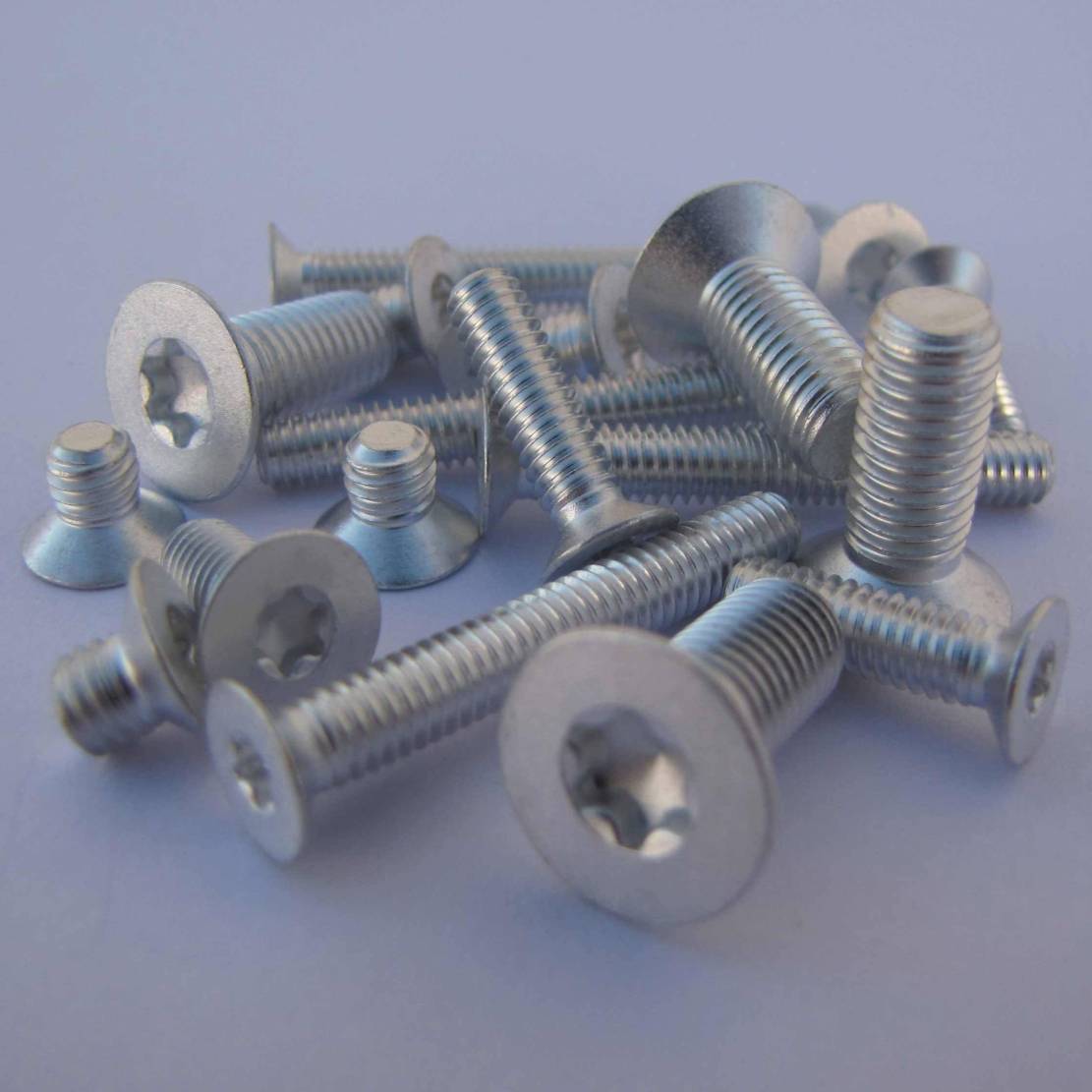

Six Lobe machine screws, flat Head, 100 degrees countersink. We are a stocking distributor and we have developed a complete family of these screws that meet the mechanical requirements of NAS 514 and NAS 517, but with NAS 1800 six lobe drive. You can order these 100 degrees reduced flat head and 100 degrees tension head screws as needed directly online at this web store site. Shopping is easy and delivery is fast.

 We believe that we have the largest inventory of Torx® Drive, 6-Lobe Drive and Star Drive screws on the PLANET. Have you always wanted to own Torx® Drive screws, which are reported to be 5 times better than Hex, but could not afford them? Now is your chance! Click on the button and give your name, address and phone number to get your paper catalog mailed to you. SecurityMetrics for PCI Compliance, QSA, IDS, Penetration Testing, Forensics, and Vulnerability Assessment

METRIC

INCH

BOTH

Database Organization of Screws on This Web Site - Click Here

FOR A FREE DOWNLOAD OF OUR NEW EXPANDED WEB CATALOG Click Here

FOR A HANDY POCKET SIZE INSTRUCTION MANUAL ON HOW TO USE THIS WEB SITE Click Here

CLICK ON ANY PICTURE

FREE! TABLE OF DRIVER SIZES FOR THESE NAS 514 AND NAS 517 SCREWS

You can shop for these six lobe, Torx® screws by clicking on any of the pictures above or Search Our Store for a specific fastener item or Browse Our Store catalog index.

Let Aaron's web site stores be your single source for Aerospace and Military fasteners (sujetadores). We have dedicated this web store just for 6-lobe, Torx®, star and six lobe drive users. In this regard we have provided a page on this web site where you can go to find more information about Torx® screws. It will be updated quite frequently to respond to questions that we

receive as the web site matures. It is the only place, on the web or off of the web, where all of your screw requirements can be met. If we do not have it in inventory when you place your order, we will get it and guarantee you that we will have it in inventory the next time you order that item.

We currently have over 2,146 different sizes of 100 degree, flat head screws which are 8740 (UNS G87400) alloy steel in accordance with AMS 6322

These Alloy Steel Screws come Cadmium Plated, Flat Head, 100 Degrees, UNJC and UNJF threads.

All credit cards are accepted. If you need a quote by e-mail, Click Here. These fasteners are normally sold in quantities of 10, 100, 1,000 (or multiples thereof) but discounts are given for full carton orders. You may find that a carton order has the same or more pieces in the carton than an order for 100 or 1,000 and yet has a lower price. Because we are a volume warehouse supplier, we reward customers for volume business. Our web store prices are approximately 20% lower than our street prices at our physical stores.

Shipping charges are calculated automatically while you are in the buying process. After you press the "Checkout" button a new screen will ask for shipping method, billing address and shipping address. If you are in California, there will be an automatic sales tax added unless you complete the tax exempt window in the shopping cart. In addition there will be a $6.50 handling charge added to all orders when the shipment is freight collect. If you should want to try different shipping methods to get the one best suited for you, simply click the "Back" button on your browser, change the shipping method and click on "Continue". If you want to try still another shipping method, simply repeat this procedure.





NAS 514 vs NAS 517

These screws on this web site meet the general requirements of the NAS 514 and NAS 517 specification with the only difference being the drive system is Torx®/Six Lobe instead of Cross Recess/Phillips. The NAS 514 is called a tension screw, is full thread and is heat treated to 125 - 145 KSI tensile strength in accordance with MIL-H-6875. The NAS 517 is called a shear screw, is partial thread and is heat treated to 160 - 180 KSI in accordance with AMS2759. The portion of the NAS 517 screw that is unthreaded is called the GRIP LENGTH and is measured from the top of the head to the start of threads. The Grip Body Diameter is critical on this screw and we have attached a table of this requirement (click here). We have also attached a table of GRIP LENGTHS for the NAS 517 screws. To access this table of grip lengths, please (click here).

Both screws are Cadmium Plated but because of the hardness after heat treating, the NAS 514 is Cadmium Plated to spec QQ-P-416 Type I (Silver Color), Class 2 which requires no special pre or post baking to prevent hydrogen embrittlement. But, the NAS 517 after heat treating is much harder and therefore requires special pre and post baking when Cadmium plated to prevent hydrogen embrittlement. The NAS 517 is Cadmium Plated per AMS QQ-P-416 Type II, (Yellow Color), Class 2.

HOW TO CONTACT US

Aaron's Six Lobe Screws
714 W. Angus Avenue
Suite E
Orange, CA 92868-1326
Phone: 714-838-3575 or
toll free: 877-838-3575
Fax: 714-838-3165

E-mail: sales@AaronsSixLobeScrews.com

URL: http://www.AaronsSixLobeScrews.com

"TORX® is a registered trademark of Acument Intellectual Properties, LLC"
