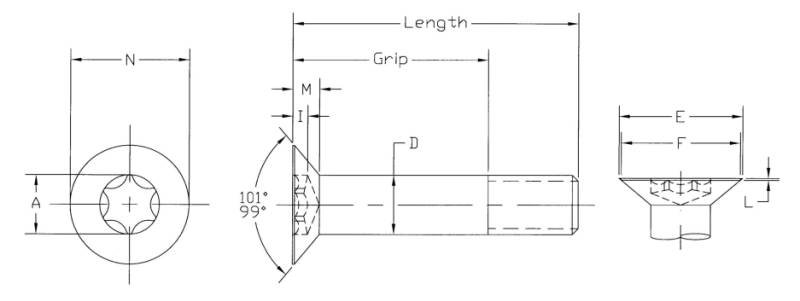

DIMENSIONS OF NAS 517 HEAD, 100 DEGREE FLAT HEAD SCREWS

      HEAD OD AT HEAD OD HEAD CHAMFER RADIUSED RADIUS
DIA   GRIP BODY OD SHARP CORNER ABSOLUTE HEIGHT SCREW END EDGE UNDER HEAD
DASH   "D" "E" "F" "M"   "L"
NO. THREAD MIN MAX MIN MAX MIN   MAX   MIN MAX
2 .1640-32 UNJC-3A    0.1610    0.1640 0.323 0.334 0.287 0.068 0.031 0.015 0.010 0.020
3 .1900-32 UNJF-3A    0.1860    0.1890 0.375 0.387 0.337 0.080 0.031 0.016 0.010 0.020
4 .2500-28 UNJF-3A    0.2460    0.2490 0.496 0.510 0.452 0.106 0.031 0.018 0.010 0.020
5 .3125-24 UNJF-3A    0.3085    0.3115 0.622 0.638 0.572 0.133 0.047 0.021 0.010 0.025
6 .3750-24 UNJF-3A    0.3710    0.3740 0.748 0.766 0.692 0.159 0.047 0.023 0.015 0.030
7 .4375-20 UNJF-3A    0.4325    0.4365 0.874 0.894 0.812 0.186 0.047 0.026 0.015 0.035
8 .5000-20 UNJF-3A    0.4950    0.4990 1.000 1.022 0.932 0.213 0.047 0.028 0.020 0.040

COMPARISON WITH STANDARD 100 DEGREE FLAT HEAD SCREWS

DIA THREAD GRIP BODY OD HEAD OD AT HEAD OD HEAD CHAMFER RADIUSED RADIUS
DASH       SHARP CORNER ABSOLUTE HEIGHT SCREW END EDGE UNDER HEAD
NO.   MIN MAX MIN MAX MIN REF. MAX   MIN MAX
2 .1640-32 UNJC-3A  N/A   N/A    0.332 0.285 0.072 0.031 0.015 0.010 0.020
3 .1900-32 UNJF-3A  N/A   N/A    0.385 0.333 0.083 0.031 0.016 0.010 0.020
4 .2500-28 UNJF-3A  N/A   N/A    0.507 0.442 0.110 0.031 0.018 0.010 0.020
5 .3125-24 UNJF-3A  N/A   N/A    0.635 0.556 0.138 0.047 0.021 0.010 0.025
6 .3750-24 UNJF-3A  N/A   N/A    0.762 0.670 0.165 0.047 0.023 0.015 0.030
7 .4375-20 UNJF-3A  N/A   N/A    0.890 0.783 0.193 0.047 0.026 0.015 0.035
8 .5000-20 UNJF-3A  N/A   N/A    1.017 0.897 0.221 0.047 0.028 0.020 0.040
